Wireless charging coils categories:

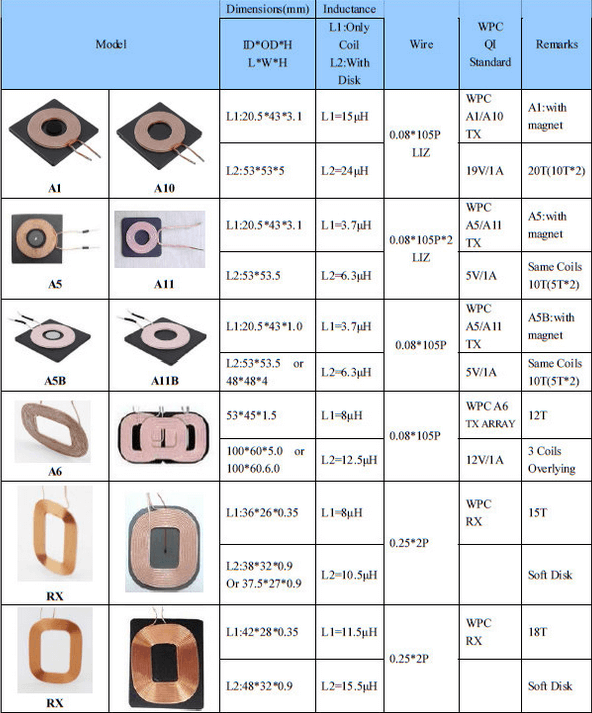

JHCOILS: Some Design #More For Wireless Charging Coils
Your Right place for souring wireless charging coils and other custom coils on the market.
Wireless Charging Transmitter Coils
| Products | Datasheet | Product Code | Description | Founction | Ask for sample |
|---|---|---|---|---|---|
 Enlarge |  Check it | JH-H50-T-A10-S | Name:A10 wireless Transmission coil with magnetic Layer:2 Layer, Standard:QI/WPC Inductance:24uH±10% | Transmission coil | Contact Us |
 Enlarge |  Check it | JH-H50-T-A10B-S | Name:A10 wireless Transmission coil with magnetic Layer:2 Layer, Standard:QI/WPC Inductance:24uH±10% | Transmission coil | Contact Us |
 |  Check it | JH-H43-MP-A2-S | Name:MP-A2 wireless Transmitter coil with ferrite sheet Layer:2 Layer, Standard:QI/WPC Inductance:10.4uH±10% | Transmitter coil | Contact Us |
 |  Check it | JH-H24-T-C3-R | Name:Small size wireless Transmitter coil Layer:2 Layer, Standard:QI/WPC Inductance:6.5uH±10% Small size:20*2.6mm | Transmission coil | Contact Us |
MORE DESIGN OF TRANSMITTER COILS
CHECK FOR MOREWireless Charging Receiver Coils
| Products | Datasheet | Product Code | Description | Founction | Ask for sample |
|---|---|---|---|---|---|
 |  Check it | JH-H10-R-C1-S | Name:WPC Wireless Power Transfer Receiver Coil Layer:2 Layer, Standard:QI/WPC Inductance:13.2uH±10% | Receiver coil | Contact Us |
 Enlarge |  Check it | JH-H10-R-C2-S | Name:WPC wireless receiver coil Module Layer:2 Layer, Standard:QI/WPC Inductance:18uH±10% | Receiver coil | Contact Us |
 Enlarge |  Check it | JH-H10-R-C5-S | Name:15W Wireless Charging Receiver Coil Layer:1 Layer, Standard:QI/WPC Inductance:8.0uH±10% | Receiver coil | Contact Us |
 |  Check it | JH-H10-R-C6-S | Name:Copper Wire Wireless Charging Receiver Coil Layer:1 Layer, Standard:QI/WPC Inductance:14uH±10% | Receiver coil | Contact Us |
MORE DESIGN OF RECEIVER COILS
CHECK FOR MOREWireless charging coils
The charging coils is easy to make,but vital in the wireless charging system that can effect the working efficiency & working temperature of the wireless charging power.So stable quality of charging coils is very important to the design of wireless charger.
- Wire coils
- Double-Sided adhesive tape（Glue）
- Ferrit shield
Structures of wireless charging coils
Samples About The Application Of The Charging Coils!
We can imagine more in the wireless charing member!
Smartphone Wireless charger
Wireless charger bluetooth
Wireless charger electric toothbrush
Wireless charger wallent
Wireless charging smart wear
Wireless charging sex toy
Some FAQ about wireless charging coils
Wireless charging coils is made by special winding machine,then we make secondary process,like cuting lead wire,soldering，gluing,checking,testing packing etc.After those process,we can send out to our customer.
The wireless charging coils is based on the design of wireless charging solution.The most common coils for now is 5W/10W coils for now under standard of WPC specific. But actually their also have some competitive company design nonstandard wireless charging coils,which include wireless Tx coil and Rx coil.
In China market, by using of 0.2mm Multiple copper cores,the turns of wireless receiving coils is 15Ts, the induction is about 13uh.other design like VISHAY® coil design is 18 turns by using of 0.08mm Multiple copper cores,which induction reach to 15uh.Besides,13Ts/17Ts is also appearance in the market according to their own wireless charging solution.
Contact Now
JHCOILS is the professional supplier for wireless charging coils!
Any design support,fell free contact us!
