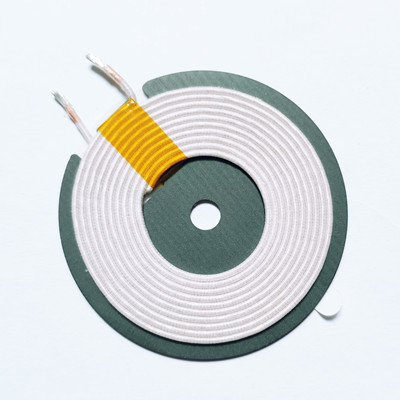

A11 Qi Transmitter Coil Supplier - JHCOIL
Many of customers are looking for A11 coil for their wireless charging projects, JHCOILS is your best supplier for A11 coil. We have about 8 years of wireless charging coil manufacturing experience, which let us provide you with very good price and good quality of coils.
JHCOILS provide all of standard WPC transmitter wireless charging coil and custom design wireless charging coil. Among them, A11 coil is our best seller model and most used by customer. We produce over 20k A11 coil every day. JHCOILS aims to be your best wireless charging coil supplier and partner. Ask for contact now.
Some KNOWLEDGE ABOUT a11 COIL
We Are Committed to Wireles Charging Coil Production, here Belows check some Knowledge about A11 Transmitter Coil.
According to WPC standard, The Primary A11 Coil is of the wire-wound type, and consists of no. 17 AWG (1.15 mm diameter) type 2 litz wire having 105 strands of no. 40 AWG (0.08 mm diameter), or equivalent. In general, the turns of A11 coil is about 10 turns. the inductance of A11 Coil is 6.3±10%μH(with ferrite shielding)

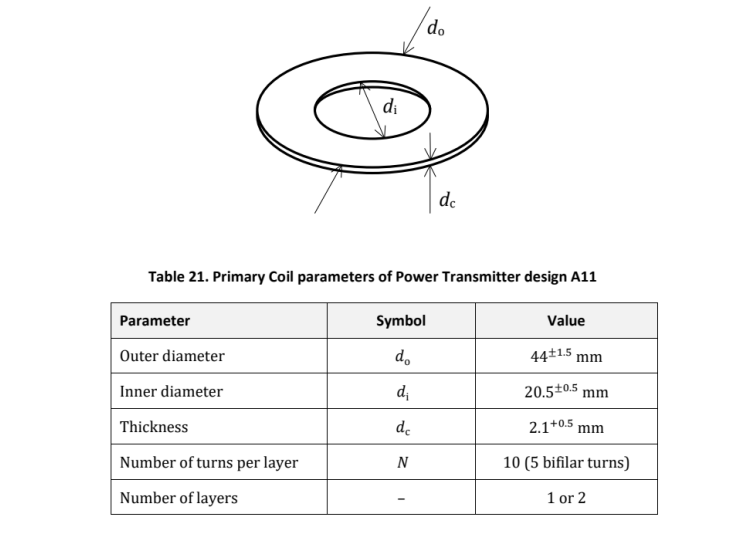

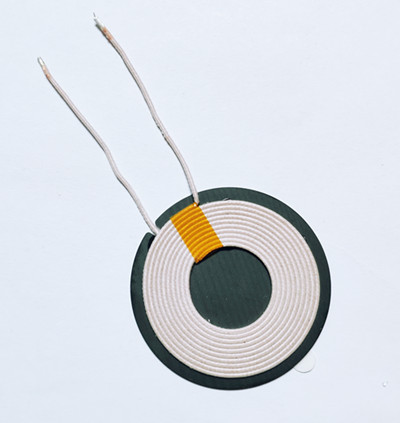

The structure of A11 Coil
The A11 wireless Charging coil Shielding should be Ni-Zn or Mn-Zn ferrite and should be at least 0.5 mm thick(In general thickness is 1.0mm). The Shielding extends to at least 2 mm beyond the outer diameter of the Primary Coil. The below size of A11 coil ferrite sheet is available from us:
- Round Ferrite Sheet: 50mm*1.0mm
- G50 Ferrite Sheet: 50mm*5mm*1.0mm
- Square Ferrite Sheet: 50mm*50mm*1.0mm
Our team of experts
Wireless Power Charging
Wireless Power Charging is becoming more and more common in our daily life,which is widely used in like smart phones,smart wear, car charger,bluetooth,laptop,wallent,etc.With this pace of technological growth we can certainly forcast in the future that we will enter intowireless charging life style without limited in the consumer market.With more and more wireless charging coils and control circuit chips manufacturers & designer hard work,wireless charging module can meet not only for low power standard like 5W,it can also support high power standard up to 100W. Technical Summary Higher coupling, lower physical distance between transmitter and receiver higher turns ratio will ensure higher voltage at receiver and so higher VIN. More turns,higher inductance & resistance. The thinner wire diameter,the higher inductance & lower resistance.
| Products | Datasheet | Product Code | Description | Founction | Ask for sample |
|---|---|---|---|---|---|
 |  Check it | JH-H50-T-A1-S | Name:A1 wireless Transmission coil with magnetic Layer:2 Layer, Standard:QI/WPC Inductance:24uH±10% | transmission coil | Contact Us |
 Enlarge |  Check it | JH-H38-T-A5-R | Name:A5 wireless Transmission coil with magnetic Layer:2 Layer, Standard:QI/WPC Inductance:6.3uH±10% | transmission coil | Contact Us |
 Enlarge |  Check it | JH-H50-T-A10-S | Name:A10 wireless Transmission coil with magnetic Layer:2 Layer, Standard:QI/WPC Inductance:24uH±10% | transmission coil | Contact Us |
 Enlarge |  Check it | JH-H50-T-A10B-S | Name:A10 wireless Transmission coil with magnetic Layer:2 Layer, Standard:QI/WPC Inductance:24uH±10% | transmission coil | Contact Us |
 Enlarge |  Check it | JH-H24-T-A11-R | Name:A11 power charging coils single layer tx coil Layer:1 Layer, Standard:QI/WPC Inductance:6.3uH±10% | transmission coil | Contact Us |
 |  Check it | JH-H20-T | Name:A12 power charging coils single layer tx coil Layer:1 Layer, Standard:QI/WPC Inductance:6.3uH±10% | transmission coil | Contact Us |
 |  Check it | JH-H45-T-A28-S | Name:A28 wireless Transmission coil with 3 coil design Layer:2 Layer, Standard:QI/WPC Inductance:7uH±10% | transmission coil | Contact Us |
Notice
1.Supply of goods
This product is directly produced at our factory. There are many standard and non-standard wireelss charging coils, So before purchasing ,you should contact the customer service to know whether there are samples, to know related costs of samples and fixtures.
2、About size
Inside and outside tolerance: ±1%
The size of coils is based on drawings.
Ferrite deviation: 6%-8%
3、About color
The color of coil is decided according to different raw material of suppliers. In general it is primary color.But if you need other colors, please communicate with our customer service staff in advance.
4、About customer service
Fell free send us by email: info@jhcoils.com
Contact Us
ready to reach new heights? Let's get there, together.
Fell free contact us for sample test
